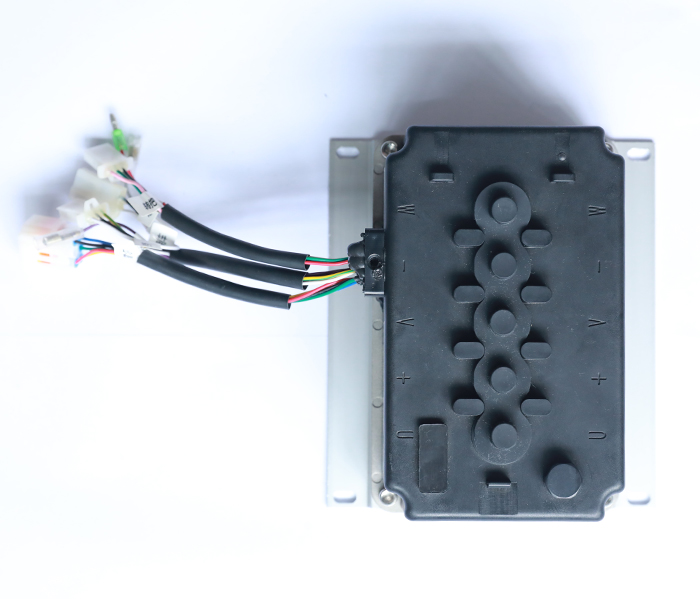

24V1500W
Product introduction
24V | Rated voltage:48VDC/60VDC/72VDC | Infineon XMC4108 master chip |
Working voltage range:36VDC~100VDC | Infineon 2EDL23N06 integrated driver chip | |
Speed range:0~5500RPM | All power sources are integrated power chips | |
Maximum torque:389N.m（齒輪箱減速比1:10) | Use current sensor to collect current | |
Maximum bus current:75A | Separate design of power and control, separate power board and control board, reduce the influence of heat in the power part on the control part. | |
Phase current up to 330A, power fast, slow hard start can be adjusted to use a variety of models; Voltage, current, temperature and other multiple protection, including motor temperature control protection; Higher system reliability |
|
